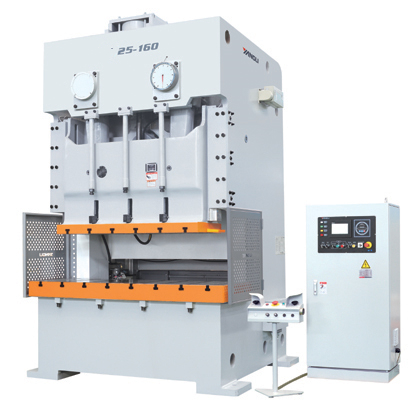

WHI21series open back press with dry clutch and shearing block protector
◆ Welded body with steel plate and high intensity.◆ Main motor is made by Siemens.
◆ Adopts combined pneumatic friction clutch and brake.
◆ Cluster gear adopts the flooding oil lubrication.
◆ Six-face rectangle lengthen guide.
◆ Rigid pressing down style overload protector.
◆ WHI21-25/25B/45 adopts manual shut height adjustment,among these types WHI21-25/45 adopts scale display and WHI21-25B with digital display.
◆ WHI21-63 and above type adopts electric shut height adjustment with digital display.
◆ WHI21-45 can equip with die set height adjustment motor, the value will be displayed by digita.
◆ WHI21-25B,WHI21-45 and above type equipped with lifting balance cylinder.
◆ Duplex valves imported.
◆ Adopt grease lubrication system.
◆ Balancing cylinder adopts manual lubrication system.
◆ Controlled by PLC with international brand.
◆ Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
◆ Equipped with optional air cushion device,automatic feed shaft and photoelectric protector,which can used to work with various automatic equipments.
|
WHI25-80 |
WHI25-110 |
WHI25-160 |
WHI25-200 |
WHI25-250 |
|||||||
WHID25-80 |
WHID25-110 |
WHID25-160 |
WHID25-200 |
WHID25-250 |
||||||||
Type |
|
Ⅰ |
Ⅱ |
Ⅰ |
Ⅱ |
Ⅰ |
Ⅱ |
Ⅰ |
Ⅱ |
Ⅰ |
Ⅱ |
|
Capacity |
kN |
800 |
1100 |
1600 |
|
2000 |
2500 |
|||||
Nominal Force |
mm |
5 |
3 |
5 |
3 |
6 |
3 |
7 |
3 |
7 |
3.5 |
|
Slide Stroke |
mm |
160 |
90 |
180 |
110 |
200 |
130 |
250 |
150 |
280 |
170 |
|
SPM |
Fixed |
min-1 |
55 |
70 |
50 |
60 |
45 |
55 |
35 |
45 |
30 |
40 |
Variable |
40-75 |
55-90 |
35-65 |
50-80 |
35-50 |
40-65 |
25-45 |
35-55 |
20-35 |
30-45 |
||
Max. Die Height |
mm |
350 |
400 |
450 |
500 |
550 |
||||||
Die Height Adjustment |
mm |
80 |
90 |
100 |
110 |
120 |
||||||
Between Slide Center & Frame |
mm |
310 |
350 |
390 |
430 |
470 |
||||||
Bolster (FB×LR) |
mm |
600 |
680 |
760 |
840 |
920 |
||||||
1600 |
1880 |
2040 |
2420 |
2700 |
||||||||
Bolster Thickness |
mm |
110 |
145 |
130 |
165 |
150 |
185 |
170 |
220 |
180 |
235 |
|
Slide Area (FB×LR) |
mm |
460×1200 |
520×1360 |
580×1500 |
650×1850 |
700×2100 |
||||||
Shank Hole (Dia.×Dpth) |
mm |
3-φ60×60 |
3-φ60×70 |
3-φ60×75 |
3-φ60×85 |
3-φ60×95 |
||||||
Between Columns |
mm |
1200 |
1450 |
1600 |
1900 |
2220 |
||||||
Main Motor |
Model |
|
YCT225-4A |
YCT225-4B |
YCT250-4A |
YCT250-4B |
YCT280-4A |
|||||
Power |
kW |
11 |
15 |
18.5 |
22 |
30 |
||||||
Cushion Ejecting Force |
kN |
40×2 |
55×2 |
80×2 |
100×2 |
125×2 |
||||||
Cushion Stroke |
mm |
60 |
70 |
80 |
90 |
100 |
||||||
Bolster Height |
mm |
900 |
935 |
900 |
935 |
950 |
985 |
1000 |
1050 |
1100 |
1155 |
|
Outline Size (FB×LR×H) |
mm |
2160×1750×3100 |
2250×2040×3260 |
2550×2220×3580 |
2660×2560×3980 |
2880×2860×4320 |
||||||
Net Weight |
kg |
W25:13000 |
W25:16000 |
W25:26000 |
W25:30000 |
W25:42000 |
||||||
WHID25:12500 |
WHID25:15500 |
WHID25:25500 |
WHID25:29500 |
WHID25:41500 |
