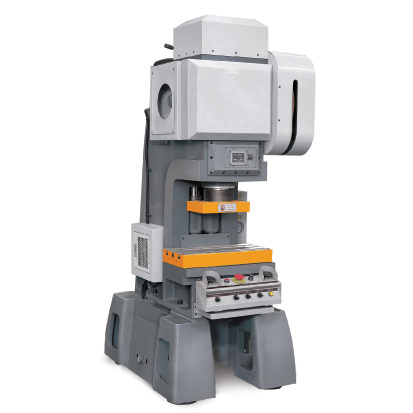

◆ Machine body and frame are made of high-strength cast iron, excellent shock absorption performance, ensuring long-term precision.
◆ Main components such as frame, slide, pitman and central column are produced by CNC equipments to guarantee the geometry precision of the press
◆ Main transmission unit adopts inverter control with stable speed adjustment.
◆ Main shaft of the press adopts imported roller bearing.
◆ Adopts three cylinder guide columns (two guide columns and one center column) structure.
◆ Reverse side load dynamic balance is adopted which is to balance the shock produced by crankshaft and sliding in high-speed running and control the precision of the bottom dead point.
◆ Manual shut height adjustment with digital display.
◆ Hydraulic die lock device.
◆ Electric compelling oil lubrication system.
◆ Concentrated control by PLC with international brand.
◆ Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand
Model
HS-25
HS-45
HS-63
Capacity
250
450
630
Nominal Stroke
1.5
1.5
1.5
Slide Stroke
20
25
30
20
30
40
25
30
40
50
SPM
200-1000
200-900
200-800
200-800
200-700
200-600
200-800
200-700
200-600
200-500
Max. Die Height
215
212
210
245
240
235
258
255
250
245
Die Height Adjustment
30
30
50
Bolster (LR×FB×Thk)
600×300×80
680×420×90
890×470×110
Bolster Opening (LR×FB)
300×100
400×100
500×100
Slide Area (LR×FB)
320×220
420×320
540×340
Main Motor Power
4
5.5
11
Air Pressure
0.5
0.5
0.5
