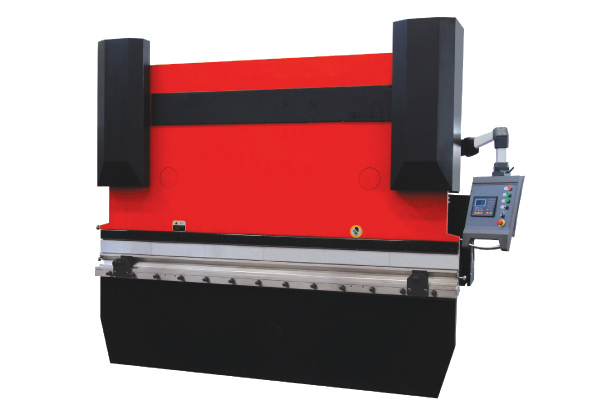

Economical CNC Bending Machine

67K-40

/2000

67K-40

/2500

67K-63

/2500

67K-80

/2500

67K-80

/3200

67K-80

/4000

67K-100

/2500

67K-100

/3200

Capacity

kN

400

400

630

800

800

800

1000

1000

Bolster Length

mm

2000

2500

2500

2500

3200

4000

2500

3200

Between Columns

mm

1650

2000

2000

1990

2600

3350

1850

2550

Throat Depth

mm

200

200

250

280

280

280

320

320

Slide Stroke

mm

100

100

100

100

100

100

130

130

Stroke Adjustment

mm

80

80

80

80

80

80

100

100

Max. Shut Height

mm

330

330

340

360

360

360

390

390

SPM

min^-1

≥11

≥11

≥10

≥10

≥10

≥10

≥10

≥10

Main Motor Power

kW

4

4

5.5

7.5

7.5

7.5

7.5

7.5

Net Weight

kg

3000

3600

4600

4800

6180

7720

6050

7400

Outline Size

(L×W×H)

mm

2500×1900

×2240

2950×1920

×2240

3100×1890

×2200

3120×1910

×2300

3820×1925

×2300

4650×1925

×2300

3190×1945

×2420

3790×1945

×2420

67K-100

/4000

67K-125/2500

67K-125/3200

67K-160/2500

67K-160/3200

67K-160/4000

67K-160/6000

Capacity

kN

1000

1250

1250

1600

1600

1600

1600

Bolster Length

mm

4000

2500

3200

2500

3200

4000

6000

Between Columns

mm

3350

1850

2550

1950

2540

3140

4800

Throat Depth

mm

320

320

320

330

330

330

330

Slide Stroke

mm

130

130

130

200

200

200

200

Stroke Adjustment

mm

100

100

150

150

150

150

150

Max. Shut Height

mm

390

390

390

465

465

465

465

SPM

min^-1

≥10

≥10

≥10

≥6

≥6

≥6

≥6

Main Motor Power

kW

7.5

7.5

7.5

11

11

11

11

Net Weight

kg

8400

6100

7300

8900

9720

11160

18600

Outline Size

(L×W×H)

mm

4590×1945

×2420

3190×1945

×2420

3790×1935

×2420

3300×2225

×2560

4100×2250

×2560

4800×2250

×2560

6400×2250

×2960
