◆ Welded Steel plate framework, specially treated and formed a D shape hole from C shape to have high intensity and rigidity.
◆ Combined pneumatic friction clutch and brake.
◆ Equipped with lifting balance cylinder.
◆ Duplex valves imported.
◆ Electric compelling oil lubrication system.
◆ Control by PLC with international brand.
◆ Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand
◆ Equipped with hydraulic overload protecting device.
◆ Electric shut height adjustment with digital display.
◆ Electronic cam device with intelligent top dead center stop function and several safety function.
◆ We can provide terminals according to customized die requirements. We also can provide automatic feeding device to realize auto produce of the press.
WHI21G-63
WHI21G-80

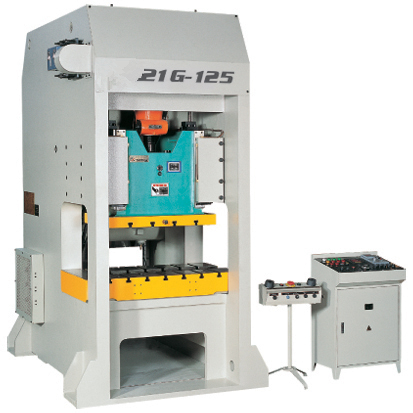

WHI21G-125
WHI21G-160
WHI21G-200
Capacity
kN
630
800
1250
1600
2000
Nominal Stroke
mm
1.5
2
2
2
2
Slide Stroke
mm
30
30
30
40
40
SPM
min-1
150-250
150-250
150-250
90-120
90-120
Max. Die Height
mm
300
350
380
400
450
Die Height Adjustment
mm
60
60
60
60
60
Between Slide Center & Frame
mm
300
320
350
380
390
Bolster (FB×LR)
mm
580×900
620×1090
680×1220
740×1300
760×1350
Bolster Thickness
mm
140
160
180
180
200
Bolster Opening (FB×LR)
mm
100×350
150×400
200×580
200×700
200×750
Slide Area (FB×LR)
mm
400×480
500×800
620×880
650×950
680×1000
Shank Hole (Dia.×Dpth)
mm
φ50×80
φ50×80
φ60×80
φ65×90
φ65×90
Between Columns
mm
680
790
860
930
970
Motor Power
kW
11
15
18.5
22
30
Outline Size(FB×LR×H)
mm
2050×1300×2700
2500×1600×2950
2620×1650×3200
2330×1870×3240
2560×1900×3320
Net Weight
kg
About 10000
About 11000
About 16500
About 18500
About 19880
