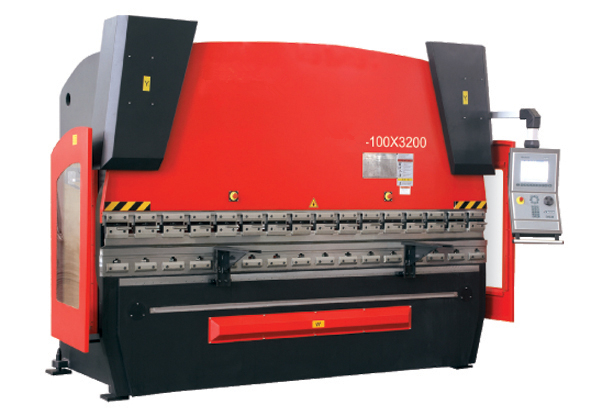

MB series CNC press brake

MB series CNC hydraulic press brake has two hydraulic cylinders with electro hydraulic servo valve. Deflection can be compensated by hydraulic vaulted back-off system. Backgauge mechanism can control several backgauge axes. Its frame is welded with steel plate and is treated with annealing.Hydraulic system adopts integrated control system and imported ring seals. It has a beautiful and simple contour.

			63×1500	63×2500	100×3200	100×4200	160×3200	160×4200	250×3200
Capacity		kN	630	630	1000	1000	1600	1600	2500
Max. Bending Length		mm	1500	2500	3200	4200	3200	4200	3200
Between Columns		mm	1100	2060	2700	3700	2700	3700	2700
Max. Shut Height		mm	430	430	480	480	480	480	480
Slide Stroke		mm	200	200	200	200	200	200	200
Throat Depth		mm	370	370	400	400	400	400	400
Bolster Width		mm	150	150	200	200	200	200	200
Down Speed		mm/min	100	100	130	130	130	130	110
Pressing Speed		mm/min	8	8	10	10	10	10	10
Return Speed		mm/min	100	100	125	125	125	125	110
Back Gauge Stroke		mm	500	500	500	500	500	500	500
Outline Size	L	mm	1825	2825	3500	4500	3500	4500	3500
	W	mm	1650	1650	1650	1650	1650	1650	1730
	H	mm	2600	2430	2540	2540	2580	2580	2580
Weight		kg	4600	5600	8000	9500	10000	12000	15000

			250×4200	300×3000	300×4000	300×6000	400×4000	400×5000	400×6000
Capacity		kN	2500	3000	3000	3000	4000	4000	4000
Max. Bending Length		mm	4200	3000	4000	6000	4000	5000	6000
Between Columns		mm	3700	2500	3150	5050	3150	4050	5050
Max. Shut Height		mm	480	480	480	480	480	480	480
Slide Stroke		mm	200	200	200	200	320	320	320
Throat Depth		mm	400	400	400	400	400	400	400
Bolster Width		mm	200	250	250	250	250	250	250
Down Speed		mm/min	110	80	80	80	80	80	80
Pressing Speed		mm/min	10	8	8	8	8	8	8
Return Speed		mm/min	110	85	85	85	80	80	80
Back Gauge Stroke		mm	500	500	500	500	500	500	500
Outline Size	L	mm	4500	3300	4300	6400	4300	5300	6400
	W	mm	1730	1950	1950	2000	2100	2100	2100
	H	mm	2580	2670	2670	2950	3100	3100	3170
Weight		kg	17000	20000	22000	30000	27000	32000	38000
