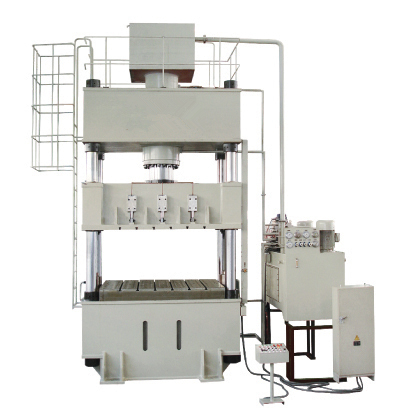

Hydraulic Pressing Machine

Hydraulic Pressing Machine

Product description:
INQUIRY

			27-100	27-160	27-200	27-250	27-315	27-400
Capacity		kN	1000	1600	2000	2500	3150	4000
Return Force		kN	160	210	240	400	600	500
Slide Stroke		mm	510	560	710	710	800	800
Shut Height		mm	800	900	1120	1120	1250	1250
Hyd. Pad Capacity		kN	400	630	630	1000	1250	1250
Hyd. Pad Return Force		kN	147	250	250	320	360	360
Hyd. Pad Stroke		mm	200	200	250	250	300	300
Slide Speed	Idle Stroke	mm/s	100	110	150	130	100	130
	Pressing	mm/s	7-15	4-10	5-12	7-15	5-12	4-10
	Return	mm/s	85	65	95	90	60	70
Hyd. Pad Speed	Eject	mm/s	35	25	38	40	30	30
Hyd. Pad Speed	Return	mm/s	100	65	95	110	100	100
Bolster	LR	mm	690	800	1000	1100	1260	1250
Bolster	FB	mm	630	800	940	1000	1160	1250
Hydraulic Pad	LR	mm	350	500	670	670	820	820
Hydraulic Pad	FB	mm	350	500	670	670	820	820
Outline Size	LR	mm	2500	2890	3100	3250	3100	3150
	FB	mm	1150	1250	1350	1350	2100	2300
	Above Floor	mm	3400	3700	4000	4200	4800	5100
Main Motor Power		kW	7.5	11	15	22	22	22
Weight		kg	5500	8200	11000	14000	18000	22000

			27-400A	27-500	27-500A	27-500B	27-630	27-630A
Capacity		kN	4000	5000	5000	2500×2	6300	3150×2
Return Force		kN	500	900	900	400	850	600×2
Slide Stroke		mm	800	900	900	900	900	900
Shut Height		mm	1250	1500	1500	1500	1500	1500
Hyd. Pad Capacity		kN	1250	2000	2000	1000	1250×2	1250×2
Hyd. Pad Return Force		kN	360	780	780	320×2	360×2	360×2
Hyd. Pad Stroke		mm	300	350	350	350	350	350
Slide Speed	Idle Stroke	mm/s	130	120	150	150	130	140
	Pressing	mm/s	4-10	7-15	7-15	7-15	5-12	5-12
	Return	mm/s	70	80	90	90	85	85
Hyd. Pad Speed	Eject	mm/s	30	37	37	37	30	30
Hyd. Pad Speed	Return	mm/s	100	95	95	110	105	105
Bolster	LR	mm	1750	1400	2200	2200	1600	2500
Bolster	FB	mm	1250	1400	1600	1600	1600	1800
Hydraulic Pad	LR	mm	1270	970	1720	1720	1120	2020
Hydraulic Pad	FB	mm	820	970	1120	1120	1120	1270
Outline Size	LR	mm	3700	5800	6600	6600	4150	5100
	FB	mm	2300	2600	2600	2600	2600	2600
	Above Floor	mm	5250	5350	5550	5450	5600	6200
Main Motor Power		kW	22	2×22	2×22	2×22	2×22	2×22
Weight		kg	28000	33000	47000	44000	42000	70000

			27-800	27-800A	27-1000	27-1250	27-1500	27-2000
Capacity		kN	8000	4000×2	10000	6300×2	PREVIOUS：Hydraulic Pressing Machine NEXT：Hydraulic Pressing Machine RELATED PRODUCTS Semi-Straight Press High Speed Pressing High Speed Pressing High Speed Pressing CATEGORIES Pressing Machine+ Shearing Machine+ Bending Machine+ Bending Machine CNC Turrent Punch Press Turrent Punching Machine+ CNC+ Engraving And Milling Machine+ Bridge Type Machining Center+ Machining Center+ CNC Milling and Boring Center+ CNC Milling Machine+ Conventional Lathe+ Drilling Machine+ Boring Machines+ LATEST NEWS Winstar New Logo2023-01-28 CONTACT US WinStar Heavy Industry Co., Ltd. Tel: 86 24 23214151 Fax: 86 24 23214151 Add: Kaifa Avenue, Shenyang Economic & Technological 110142 Share Call Menu Top CopyRight 2017 All Right Reserved.WinStar Heavy Industry Co., Ltd. Add: Kaifa Avenue, Shenyang Economic & Technological 110142 Tel: 86 24 23214151 Fax: 86 24 23214151 WinStar Heavy Industry Co., Ltd.
