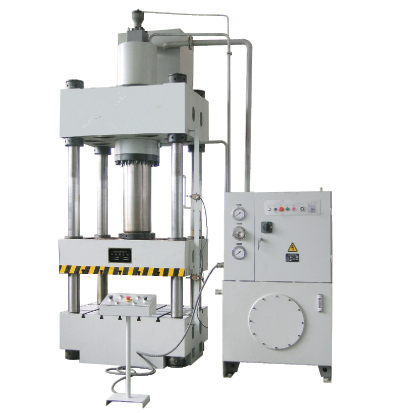

Hydraulic Pressing Machine

Hydraulic Pressing Machine

Product description:
INQUIRY

			32-63	32-100	32-160	32-200	32-250	32-250A	32-315
Capacity		kN	630	1000	1600	2000	2500	2500	3150
Ejecting Force		kN	190	190	190	280	280	280	630
Return Force		kN	120	165	210	240	400	400	600
Slide Stroke		mm	500	500	560	710	710	710	800
Ejecting Force		mm	200	200	200	200	200	200	300
Max. Shut Height		mm	800	800	900	1120	1120	1120	1250
Slide Speed	Idle Stroke	mm/s	100	120	100	120	130	160	100
	Pressing	mm/s	8-16	7-15	4-10	5-12	4-10	4-10	5-12
	Return	mm/s	85	90	70	95	60	60	60
Ejecting Speed	Eject	mm/s	55	75	75	80	80	80	55
Ejecting Speed	Return	mm/s	105	140	140	145	145	145	145
Bolster	LR	mm	580	690	800	1000	1120	1800	1260
Bolster	FB	mm	500	630	800	940	1000	1200	1160
Outline Size	LR	mm	2500	2500	2550	2650	2800	3600	3500
	FB	mm	1430	1430	1430	1350	1400	1400	1500
	Above Floor	mm	3220	3250	3210	3800	3950	4290	4600
Main Motor Power		kW	5.5	7.5	11	15	15	15	22
Weight		kg	2800	3700	6500	9000	10300	16000	14000

			YL32-315A	YL32-400	YL32-500	YL32-500A	YL32-500B	YL32-630	YL32-630A
Capacity		kN	3150	4000	5000	5000	2500×2	6300	6300
Ejecting Force		kN	630	630	1000	1000	1000	1000	1000
Return Force		kN	600	500	900	900	400×2	850	850
Slide Stroke		mm	800	800	900	900	900	900	900
Ejecting Force		mm	300	300	350	350	350	350	350
Max. Shut Height		mm	1250	1250	1500	1500	1500	1500	1500
Slide Speed	Idle Stroke	mm/s	90	100	100	100	150	100	130
	Pressing	mm/s	5-12	4-10	7-15	7-15	7-15	5-12	5-12
	Return	mm/s	60	70	80	80	90	85	85
Ejecting Speed	Eject	mm/s	55	55	75	75	75	75	75
Ejecting Speed	Return	mm/s	145	145	170	170	170	170	170
Bolster	LR	mm	900	1250	1400	2200	2200	1600	2200
Bolster	FB	mm	900	1250	1400	1600	1600	1600	1600
Outline Size	LR	mm	3150	3500	3900	4800	4800	4510	4900
	FB	mm	1500	1600	2150	2250	2250	2250	2250
	Above Floor	mm	4500	4850	5200	5700	5600	5400	5700
Main Motor Power		kW	22	22	2×22	2×22	2×22	2×22	2×22
Weight		kg	11000	16500	25500	35000	34000	33000	42000

			32-630B	32-800	32-1000	32-1000A	32-1600	32-2000	32-2000A
Capacity		kN	3500×2	8000	10000	5000×2	2×8000	2×10000	6300×2+8000
Ejecting Force		kN	1000	1000	1600	1600	1000×2	1600×2	1600×3
Return Force		kN< PREVIOUS： General Bending Machine NEXT：Hydraulic Pressing Machine RELATED PRODUCTS Semi-Straight Press High Speed Pressing High Speed Pressing High Speed Pressing CATEGORIES Pressing Machine+ Shearing Machine+ Bending Machine+ Bending Machine CNC Turrent Punch Press Turrent Punching Machine+ CNC+ Engraving And Milling Machine+ Bridge Type Machining Center+ Machining Center+ CNC Milling and Boring Center+ CNC Milling Machine+ Conventional Lathe+ Drilling Machine+ Boring Machines+ LATEST NEWS Winstar New Logo2023-01-28 CONTACT US WinStar Heavy Industry Co., Ltd. Tel: 86 24 23214151 Fax: 86 24 23214151 Add: Kaifa Avenue, Shenyang Economic & Technological 110142 Share Call Menu Top CopyRight 2017 All Right Reserved.WinStar Heavy Industry Co., Ltd. Add: Kaifa Avenue, Shenyang Economic & Technological 110142 Tel: 86 24 23214151 Fax: 86 24 23214151 WinStar Heavy Industry Co., Ltd.
